   TABANA MONTAJ HIZLI SİGORTALAR

S00 UQ01/80













NVS 5 SIVIC

(004117001)













S00 UQ01/1000V

   TIP :   STANDARTLAR :   KESME KAPASITESI :   ANMA VOLTAJI:
 S-80mm

  IEC 60269-4-1

  DIN 43653

  ~200 kA

   ~690V & ~1000V
Boy

In

(A)

Kod

NVS-5 Siviç Takılabilir

 Kod No I²t

Guc

(w)

 Krkter

Pket

(adet)

Agırlk

(gr)

S000

690V

 6A S000UQU/80/6A/690V 4331003 19 2,8 aR 3 180
10A S000UQU/80/10A/690V 4331004 62 3,3 aR 3 180
16A S000UQU/80/16A/690V 4331005 154 4,1 aR 3 180
20A S000UQU/80/20A/690V 4331006 290 5 aR 3 180
25A S000UQ01/80/25A/690V 4371107 165 6 aR 3 150
35A S000UQ01/80/35A/690V 4371109 400 8 aR 3 150
40A S000UQ01/80/40A/690V 4371110 640 9 aR 3 150
50A S000UQ01/80/50A/690V 4371111 1.000 10 aR 3 150
63A S000UQ01/80/63A/690V 4371112 1.800 12,3 aR 3 150
80A S000UQ01/80/80A/690V 4371113 2.800 16,3 aR 3 150
100A S000UQ01/80/100A/690V 4371114 4.600 20 aR 3 150
125A S000UQ01/80/125A/690V 4371115 8.000 26,9 aR 3 150
160A S000UQ01/80/160A/690V 4371116 16.500 31,6 aR 3 150
200A S000UQ01/80/200A/690V 4371117 23.000 38,7 aR 3 150
250A S000UQ01/80/250A/690V 4371119 46.000 43,8 aR 3 150
315A S000UQ01/80/315A/690V 4371121 80.000 54 aR 3 150

S00

690V

 350A S00UQ01/80/350A/690V 4371122 100.000 60 aR 3 190
400A S00UQ01/80/400A/690V 4341123 120.000 70 aR 3 190

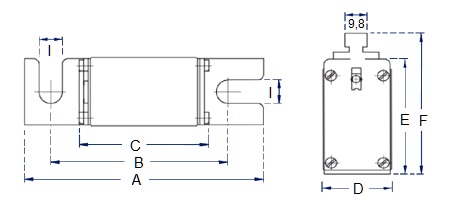

Boy A B C D I E F
000 101 78 54 21 8,5 40 58
00 105 78 56 30 10,3 51 68


    1000V TABANA MONTAJ HIZLI SİGORTALAR
Boy

In

(A)

Kod

NVS-5 Siviç Takılabilir

 Kod No I²t

Guc

(w)

 Krkter

Pket

(adet)

Agırlk

(gr)

S00

1000V

 25

S00UQ01/80/25A/1000V

 4301107 150 11 aR 3 250
32 S00UQ01/80/32A/1000V 4301108 200 15,1 aR 3 250
40 S00UQ01/80/40A/1000V 4301110 330 18,1 aR 3 250
50 S00UQ01/80/50A/1000V 4301111 670 20 aR 3 250
63 S00UQ01/80/63A/1000V 4301112 1.300 24,3 aR 3 250
80 S00UQ01/80/80A/1000V 4301113 2.400 27,4 aR 3 250
100 S00UQ01/80/100A/1000V 4301114 4.700 30 aR 3 250
125 S00UQ01/80/125A/1000V 4301115 10.000 38,2 aR 3 250
160 S00UQ01/80/160A/1000V 4301116 16.000 47,2 aR 3 250
200 S00UQ01/80/200A/1000V 4301117 30.000 57 aR 3 250
250 S00UQ01/80/250A/1000V 4301119 58.000 67 aR 3 250
315* S00UQ01/80/315A/900V 4301121 110.000 78 aR 3 250
