   NH HIZLI VİDALI (DİSK TİPİ, KÜP) SİGORTALAR







G1MUQ01/690V

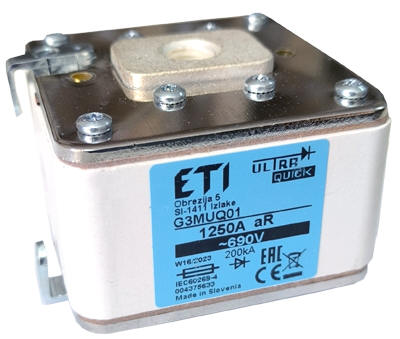

G3MUQ01/690V







AMK1 ADAPTOR

(004349001)



MK SIVIC

(004349003)

   TIP :   STANDARTLAR :   KESME KAPASITESI :   ANMA VOLAJI :
 G   IEC 60269-4-1   ~200 kA    ~690V
Boy

In

(A)

Kod

MK Siviç Takılabilir

 Kod No I²t

Guc

(w)

 Krkter

Paket

(adet)

Agırlık

(gr)
G1 80A G1MUQ01/80A/690V 4373613 2.300 15,6 aR 2 500
100A G1MUQ01/100A/690V 4373614 4.600 20 aR 2 500
125A G1MUQ01/125A/690V 4373615 6.600 25 aR 2 500
160A G1MUQ01/160A/690V 4373616 10.000 32,2 aR 2 500
200A G1MUQ01/200A/690V 4373617 18.000 39,4 aR 2 500
250A G1MUQ01/250A/690V 4373619 32.000 49,4 aR 2 500
315A G1MUQ01/315A/690V 4373621 58.000 60 aR 2 500
350A G1MUQ01/350A/690V 4373622 78.000 63 aR 2 500
400A G1MUQ01/400A/690V 4373623 110.000 66 aR 2 500
450A G1MUQ01/450A/690V 4373625 155.000 72 aR 2 500
500A G1MUQ01/500A/690V 4373626 200.000 73 aR 2 500
550A G1MUQ01/550A/690V 4373627

250.000

 80 aR 2 500
630A G1MUQ01/630A/690V 4373628 330.000 86 aR 2 500
710A G1MUQ02/710A/690V 4743629 470.000 84 aR 2 500
G2 160A G2MUQ1/160A/690V 4344616 19.300 26,7 aR 2 650
200A G2MUQ1/200A/690V 4344617 27.800 31,3 aR 2 650
250A G2MUQ1/250A/690V 4344619 45.000 39,8 aR 2 650
315A G2MUQ1/315A/690V 4344621 85.600 42,8 aR 2 650
350A G2MUQ1/350A/690V 4344622 118.000 47,5 aR 2 650
400A G2MUQ01/400A/690V 4374623 85.000 70 aR 2 650
450A G2MUQ01/450A/690V 4374625 125.000 76 aR 2 650
500A G2MUQ01/500A/690V 4374626 165.000 80 aR 2 650
630A G2MUQ01/630A/690V 4374628 310.000 85 aR 2 650
710A G2MUQ01/710A/690V 4374629 460.000 91 aR 2 650
800A G2MUQ01/800A/690V 4374630 720.000 95 aR 2 650
900A G2MUQ02/900A/690V 4744631 920.000 116 aR 2 650
1000A G2MUQ02/1000A/690V 4744632 1.300.000 121 aR 2 650
G3 450A G3MUQ1/450A/690V 4345625 200.000 57,5 aR 2 850
500A G3MUQ1/500A/690V 4345626 257.000 61,8 aR 2 850
630A G3MUQ01/630A/690V 4375628 260.000 102 aR 2 850
710A G3MUQ01/710A/690V 4375629 330.000 109 aR 2 850
800A G3MUQ01/800A/690V 4375630 500.000 117 aR 2 850
900A G3MUQ01/900A/690V 4375631 710.000 128 aR 2 850
1000A G3MUQ01/1000A/690V 4345632 1.000.000 131 aR 2 850
1250A G3MUQ01/1250A/690V 4345633 2.300.000 152 aR 2 850
1400A G3MUQ02/1400A/690V 4745634 2.600.000 162 aR 2 850
1600A G3MUQ02/1600A/500V 4745636 2.300.000 180 aR 2 850
Boy D E F M N
G1 51 51 56 M8 53
G2 60 60 65 M10 53
G3 75 75 80 M12 53



   1000V  HıZLı VIDALI SİGORTA LAR

G2MUQ01/1000V





AMK2 ADAPTOR

(00434900)

MK SIVIC

(004349003)

   TIP :   STANDARTLAR :   KESME KAPASITESI :   ANMA VOLAJI :
 G   IEC 60269-4-1   ~200 kA    ~1000V
Boy

In

(A)

Kod

MK Siviç Takılabilir

 Kod No I²t

Guc

(w)

 Krkter

Paket

(adet)

Agırlık

(gr)
G1 63A G1MUQ01/63A/1000V 4303612 2.000 15,1 aR 1 500
80A G1MUQ01/80A/1000V 4303613 3.400 20 aR 1 500
100A G1MUQ01/100A/1000V 4303614 6.100 25 aR 1 500
125A G1MUQ01/125A/1000V 4303615 11.000 30 aR 1 500
160A G1MUQ01/160A/1000V 4303616 17.000 35 aR 1 500
200A G1MUQ01/200A/1000V 4303617 31.000 45,3 aR 1 500
250A G1MUQ01/250A/1000V 4303619 50.000 54 aR 1 500
315A G1MUQ01/315A/1000V 4303621 110.000 60 aR 1 500
350A G1MUQ01/350A/1000V 4303622 150.000 65 aR 1 500
400A G1MUQ01/400A/1000V 4303623 200.000 70 aR 1 500
450A G1MUQ01/450A/1000V 4303625 310.000 74 aR 1 500
500A G1MUQ01/500A/1000V 4303626 400.000 80 aR 1 500
G2 315A G2MUQ01/315A/1000V 4304621 85.000 66 aR 2 650
350A G2MUQ01/350A/1000V 4304622 130.000 70 aR 2 650
400A G2MUQ01/400A/1000V 4304623 170.000 80 aR 2 650
450A G2MUQ01/450A/1000V 4304625 220.000 86 aR 2 650
500A G2MUQ01/500A/1000V 4304626 320.000 90 aR 2 650
630A G2MUQ01/630A/1000V 4304628 600.000 108 aR 2 650
G3 500A G3MUQ01/500A/1000V 4305626 250.000 100 aR 2 850
630A G3MUQ01/630A/1000V 4305628 500.000 110 aR 2 850
710A G3MUQ01/710A/1000V 4305629 470.000 125 aR 2 850
800A G3MUQ01/800A/1000V 4305630 870.000 136 aR 2 850
1000A G3MUQ01/1000A/1000V 4305632 2.000.000 157 aR 2 850
1100A G3MUQ01/1100A/1000V 4305633 2.500.000 165 aR 2 850
1250A G3MUQ01/1250A/1000V 4305634 3.000.000 170 aR 2 850


Boy D E F M N
G1 51 51 56 M8 75
G2 60 60 65 M10 75
G3 75 75 80 M12 75
