D0. HIZLI BUŞON SİGORTA
LAR |
|
D01UQ
gR
6A
D02UQ
gR
50A
|
|
STANDARTLAR : |
KESME KAPASİTESİ : |
ANMA VOLTAJI |
|
VDE 0636
IEC 60269-4-1 |
~50 kA/---8 kA |
~400V/---250V |
|
|
Boy |
In
(A) |
Kod |
Kod No |
I²t |
Guc
(w) |
Karakter |
Paket
(adet) |
|
D01
(E14)
|
2A |
D01UQ gR 2A |
4311001 |
6,3 |
2,3 |
gR |
10 |
|
4A |
D01UQ gR 4A |
4311002 |
13 |
3,1 |
|
6A |
D01UQ gR 6A |
4311003 |
20 |
4 |
|
10A |
D01UQ gR 10A |
4311004 |
65 |
4,2 |
|
16A |
D01UQ gR 16A |
4311005 |
200 |
5,3 |
|
D02
(E18) |
20A |
D02UQ gR 20A |
4312001 |
275 |
8 |
gR |
10 |
|
25A |
D02UQ gR 25A |
4312002 |
480 |
9 |
|
35A |
D02UQ gR 35A |
4312002 |
1,000 |
10 |
|
50A |
D02UQ gR 50A |
4312004 |
1.800 |
15 |
|
63A |
D02UQ gR 63A |
4312005 |
2.500 |
17 |
|
|
|
|

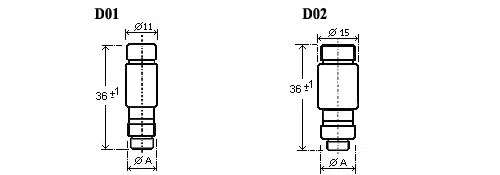

D0. gG BUŞON SİGORTA
LAR |
|
D02 gG 20A
|
|
Boy |
In
(A) |
Renk |
Kod No
gL/gG |
Karakter |
Agırlık
(gr) |
QA |
Paket
(adet) |
|
D01
(E14) |
2A |
Pembe |
2211001 |
gG |
6 |
7,3 |
10 |
|
4A |
K.Rengi |
2211002 |
6 |
7,3 |
|
6A |
Yeşil |
2211003 |
6 |
8,5 |
|
10A |
Kırmızı |
2211004 |
6 |
8,5 |
|
16A |
Gri |
2211005 |
6 |
9,7 |
|
D02
(E18) |
20A |
Mavi |
2212001 |
gG |
11 |
10,9 |
10 |
|
25A |
Sarı |
2212002 |
12 |
12,1 |
|
35A |
Siyah |
2212003 |
13 |
13,3 |
|
50A |
Beyaz |
2212004 |
13 |
14,5 |
|
63A |
Bakır |
2212005 |
15 |
15,9 |
|
D03 |
80A |
Gümüş |
2213001 |
gG |
15 |
21,4 |
10 |
|
100A |
Kırmızı |
2213002 |
15 |
21,4 |
|
|

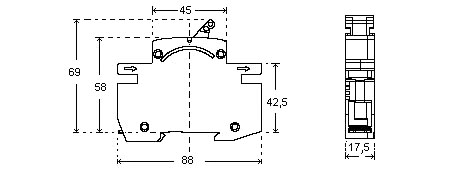

VLD & STV D0. SIGORTA YUVALARI |
|
VLD01 1P
VLD01 3P
STVD02 1P
STVD02 3P |
Kod |
Imax
(A) |
Kod No |
Ue/Ui
(V) |
Ağırlık
(gr) |
B
(mm) |
Paket
(adet) |
|
VLD01 1P
(
D01) |
6A |
2261001 |
230/400 |
67 |
17,5 |
12 |
|
10A |
2261002 |
|
16A |
2261003 |
|
VLD01 1P+N
(
D01) |
6A |
2261016 |
230/400 |
135 |
35 |
6 |
|
10A |
2261017 |
|
16A |
2261018 |
|
VLD01 2P
(
D01) |
6A |
2261006 |
230/400 |
135 |
35 |
6 |
|
10A |
2261007 |
|
16A |
2261008 |
|
VLD01 3P
(
D01) |
6A |
2261011 |
230/400 |
203 |
52,5 |
4 |
|
10A |
2261012 |
|
16A |
2261013 |
|
VLD01 3P+N
(
D01) |
6A |
2261021 |
230/400 |
270 |
70 |
3 |
|
10A |
2261022 |
|
16A |
2261023 |
 |
|
Kod |
Imax
(A) |
Kod No |
Ue/Ui
(V) |
Ağırlık
(gr) |
B
(mm) |
Paket
(adet) |
|
STVD02 1P |
63A |
2271001 |
230/400 |
119 |
26,8 |
12 |
|
STVD02 1P+N |
63A |
2271002 |
230/400 |
238 |
53,6 |
6 |
|
STVD02 2P |
63A |
2271003 |
230/400 |
238 |
53,6 |
6 |
|
STVD02 3P |
63A |
2271004 |
230/400 |
357 |
80,4 |
4 |
|
STVD02 3P+N |
63A |
2271005 |
230/400 |
476 |
107,2 |
3 |
 |
|
D0. PORSELEN SİGORTA
GÖVDELERİ |
|
|
Kod |
Imax
(A) |
Kod No |
Ue/Ui
(V) |
Ağırlık
(gr) |
Çap |
Paket
(adet) |
|
D01N-K (1 FAZ) |
16A |
2221011 |
230/400 |
68 |
E14 |
15 |
|
D01N/3-K (3 FAZ) |
16A |
2221021 |
230/400 |
216 |
5 |
|
D02N-K (1 FAZ) |
63A |
2222011 |
230/400 |
87 |
E18 |
15 |
|
D02N/3-K (3 FAZ) |
63A |
2222021 |
230/400 |
252 |
5 |
|
|
D0. SİGORTA KAPAKLAR |
 |
Kod |
Imax
(A) |
Kod No |
Ue/Ui
(V) |
Ağırlık
(gr) |
Çap |
Paket
(adet) |
|
KN D01 |
16A |
2231003 |
230/400 |
68 |
E14 |
20 |
|
KN D02 |
63A |
2232003 |
230/400 |
87 |
E18 |
20 |
|
