GÜNEŞ ENERJİ SİGORTALARI |
|
NH 1000V-DC gPV SIGORTALAR |
|
NH1C gPV DC1000V
NH2 gPV DC1000V
PK1 DC 1000V
TL1-1/9 1000V PV |
TIP : |
STANDARTLAR : |
KESME KAPASITESI : |
ANMA VOLTAJI : |
|
NH 1000V-DC |
EC 60269-6 ed 1,0 (2010-9)
IEC 60269-4 |
20
kA d.c. NH1C2
30 kA d.c. NH1-NH2-NH3 |
DC 1100V (L/R =2ms ) |
|
Boy |
In
(A) |
Kod No
MK SiviçTakılabilir |
Guc
(w) |
I²t |
Agırlık
(gr) |
Paket
(adet) |
|
gPV NH1C |
32 |
4110371 |
7,6 |
430 |
300 |
3 |
|
40 |
4110373 |
8,8 |
730 |
|
32 |
4110374 |
11 |
920 |
|
63 |
4110375 |
13,5 |
1.760 |
|
80 |
4110376 |
17 |
3.160 |
|
100 |
4110377 |
21 |
5.280 |
|
125 |
4110378 |
25,2 |
11.340 |
|
160 |
4110379 |
31,2 |
20.750 |
|
|
 |
|
Boy |
In
(A) |
Kod No
MK SiviçTakılabilir |
Guc
(w) |
I²t |
Agırlık
(gr) |
Paket
(adet) |
|
gPV NH1 |
200 |
4110342 |
27 |
29.000 |
500 |
3 |
|
gPV NH2 |
250 |
4110344 |
36 |
38.000 |
650 |
1 |
|
gPV NH3 |
315 |
4110460 |
54 |
80.000 |
1200 |
3 |
|
350 |
4110459 |
55 |
90.000 |
|
400 |
4110457 |
58 |
138.000 |
|
|

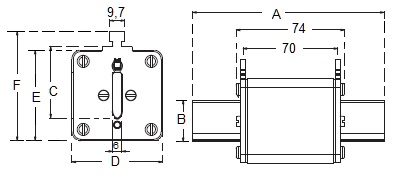

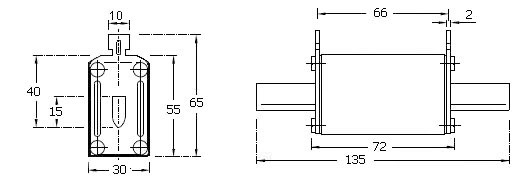

BOY |
A |
B |
C |
D |
E |
F |
|
NH1 |
135 |
24 |
42 |
51 |
51 |
67 |
|
NH2 |
150 |
30 |
48 |
61 |
61 |
71 |
|
NH3 |
150 |
37 |
60 |
73 |
73 |
87 |
|
|
|
|
PK.

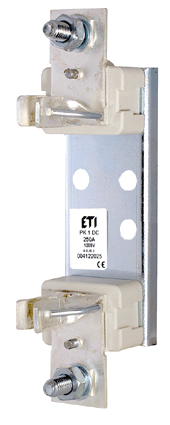

1000V-DC SIGORTA ALTLIKLARI |
|
Boy |
Kod No |
Agırlık
(gr) |
Paket
(adet) |
|
PK1 M10-M10 DC 1000V 1P |
4122025 |
605 |
3 |
|
PK2 M10-M10 DC 1000V 1P |
4122024 |
845 |
3 |
|
PK3 M12-M12 DC 1000V 1P |
4122023 |
1110 |
3 |
|
 |
|

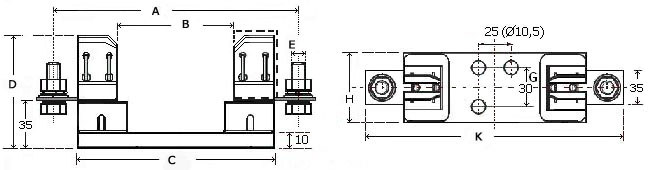

Boy |
A |
B |
C |
D |
E |
H |
K |
|
PK1 DC 1000V |
175 |
80 |
141 |
82 |
M10-M10 |
55,5 |
200 |
|
PK2 DC 1000V |
200 |
80 |
166 |
87 |
M10-M10 |
65 |
225 |
|
PK3 DC 1000V |
210 |
80 |
166 |
87 |
M12-M12 |
65 |
240 |
|
|
NH1
1000V-DC SİGORTA AYIRICI |
|
004122038 TL1-1/9 1000V PV 160A 1000V-DC KULLANIM SINIFI : DC-20B |
|
NH
1500V-DC gPV SIGORTALAR |
|
M01XL DC-1500V
M1XL DC-1500V
M3L DC-1500V
S2XL DC-1500V
|
TIP : |
STANDARTLAR : |
KESME KAPASITESI : |
ANMA VOLTAJI |
|
NH 1500V-DC |
IEC 60269-6, UL 248-19 |
30 kA d.c. |
1500V d.c. (L/R=3ms) |
|
Boy |
In
(A) |
Kod No
Bıcaklı
*( NVS-5 Siviç
Takılabilir ) |
Kod No
Kancalı
(S Tip) |
Power
dissipation
(0,7xIn)
Pd [W] |
Power
dissipation
[W] |
Pre-arcing
Joule
integral
[I2t]
(L/R = 3ms) |
Operating
Joule
integral
[I2t]
(L/R = 3ms) |
Agırlık
(gr) |
|
01XL |
50 |
004110692 |
004110743 |
7 |
18 |
500 |
3.000 |
350 |
|
63 |
004110693 |
004110744 |
8,5 |
22 |
1.000 |
6.000 |
|
80 |
004110694 |
004110745 |
9 |
21 |
2.000 |
15.000 |
|
100 |
004110695 |
004110746 |
11 |
29 |
3.500 |
25.000 |
|
125 |
004110696 |
004110747 |
13 |
36 |
4.000 |
30.000 |
|
160 |
004110697 |
004110748 |
17 |
46 |
6.000 |
48.000 |
|
1XL |
50 |
004110621* |
004110622 |
6 |
14 |
800 |
3500 |
950 |
|
63 |
004110560* |
004110591 |
6,2 |
14 |
1.500 |
6.000 |
|
80 |
004110561* |
004110592 |
7 |
16 |
5.000 |
15.000 |
|
100 |
004110562* |
004110593 |
8,3 |
19 |
10.000 |
26.000 |
|
125 |
004110563* |
004110594 |
9,7 |
22 |
15.000 |
37.000 |
|
160 |
004110564* |
004110595 |
13,2 |
30 |
19.000 |
48.000 |
|
200 |
004110565* |
004110596 |
13,7 |
32,5 |
22.000 |
75.000 |
|
2XL |
200 |
004110566* |
004110597 |
15,9 |
36 |
42.000 |
75.000 |
1350 |
|
250 |
004110567* |
004110598 |
19,3 |
44 |
73.000 |
132.000 |
|
3L |
315 |
004110630* |
004110635 |
22,2 |
57 |
65.000 |
300.000 |
1970 |
|
350 |
004110631* |
004110636 |
23,7 |
61 |
75.000 |
350.000 |
|
400 |
004110632* |
004110637 |
26,8 |
67 |
85.000 |
450.000 |
|
450 |
004110633* |
004110638 |
29 |
75 |
130.000 |
600.000 |
|
500 |
004110634* |
004110639 |
44,3 |
79 |
160.000 |
700.000 |
|
|
* NVS-5 Siviç Takılabilir |
|
S

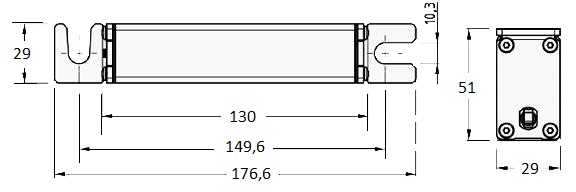

01XL gPV 1500V-DC TABANA MONTAJ
SİGORTA
 |
|
BOY |

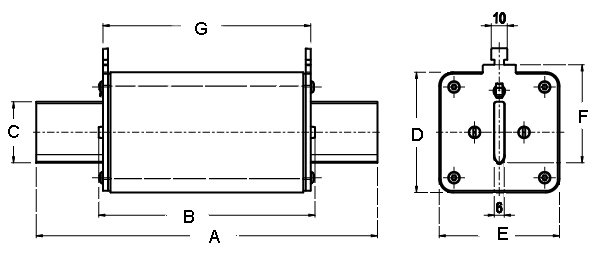

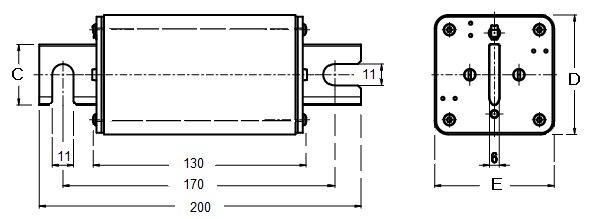

gPV 1500V-DC Kancalı ve Bıçaklı Sigortaların Ölçüleri |
|
A |
B |
C |
D |
E |
F |
G |
|
01XL |
194 |
128 |
15,05 |
51 |
29 |
|
123,2 |
|
1XL |
192 |
131 |
24 |
51 |
51 |
43,5 |
125 |
|
2XL |
208 |
130 |
30 |
60 |
60 |
48 |
126 |
|
3L |
208 |
130 |
37 |
73 |
73 |
60 |
126 |
|
|
|
|
NH 1500V-DC

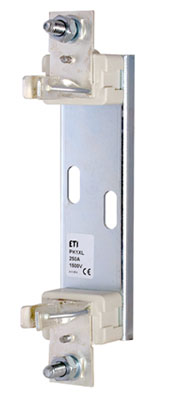

gPV SIGORTA ALTLIKLARI |
|
PK1XL DC 1500V
1p
|
|
Boy |
In
(A) |
Kod No |
Agırlık
(gr) |
Paket
(adet) |
|
PK01XL M8-M8
1500V 1p |
160 |
004132029 |
675 |
3 |
|
PK1XL M10-M10
1500V 1p |
250 |
004132017 |
675 |
3 |
|
PK2XL M10-M10
1500V 1p |
400 |
004132019 |
921 |
1 |
|
PK3L M12-M12
1500V 1p |
630 |
004132023 |
1184 |
1 |
|
 |
|

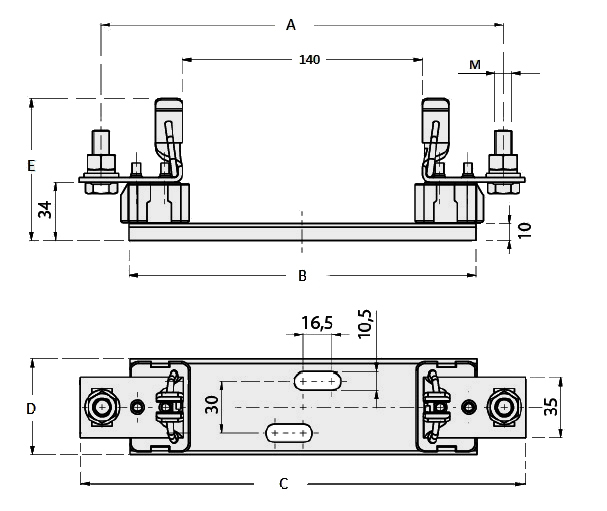

Boy |
A |
B |
C |
D |
E |
M |
|
PK1
XL |
235 |
201 |
260 |
55,5 |
82 |
M10-M10 |
|
PK2
XL |
260 |
226 |
285 |
65 |
87 |
M10-M10 |
|
PK3 L |
270 |
226 |
300 |
65 |
101,5 |
M12-M12 |
|
|
|
|
