EFD SİLİNDİRİK SİGORTA YUVALARI |
|
EFD10 1P

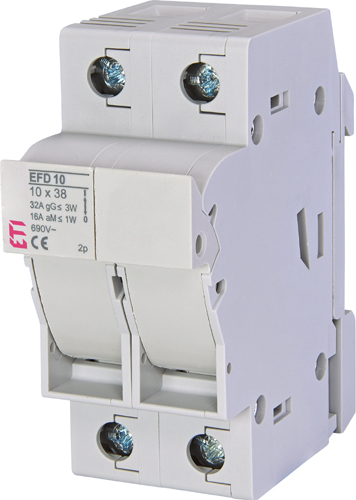

EFD10 2P
EFD10 3P
EFD14 1P
EFD14 2P
EFD22 1P
EFD22 2P
EFD22 3P |
|
EFD8 (8,5x31,5) SIGORTA YUVALARI |
|
|
Kod |
Kod No |
Indikator |
Ue/Ui
(V) |
Imax
(A) |
Agirlik
(gr) |
B
(mm)
|
Paket
(adet) |
|
EFD8 1P |
2520001 |
- |
400 |
20 |
65 |
17,5 |
12 |
|
2520011 |
LED |
|
EFD8 1P+N |
2520002 |
- |
400 |
20 |
128 |
35 |
6 |
|
2520012 |
LED |
|
EFD8 2P |
2520003 |
- |
400 |
20 |
124 |
35 |
6 |
|
2520013 |
LED |
|
EFD8 3P |
2520004 |
- |
400 |
20 |
187 |
52,5 |
4 |
|
2520014 |
LED |
|
EFD8 3P+N |
2520005 |
- |
400 |
20 |
270 |
70 |
3 |
|
2520015 |
LED |
 |
|
EFD10
(10x38) SIGORTA YUVALARI |
|
Kod |
Kod No |
Indikator |
Ue/Ui
(V) |
Imax
(A) |
Agirlik
(gr) |
B
(mm) |
Paket
(adet) |
|

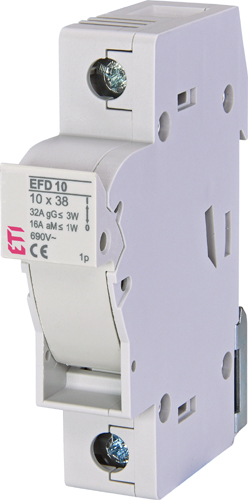

EFD10 1P |
2540001 |
|
690 |
32 |
65 |
17,5 |
12 |
|
2540011 |
LED |
|
EFD10 1P+N |
2540002 |
|
690 |
32 |
128 |
35 |
6 |
|
2540012 |
LED |
|
EFD10 2P |
2540003 |
|
690 |
32 |
124 |
35 |
6 |
|
2540013 |
LED |
|

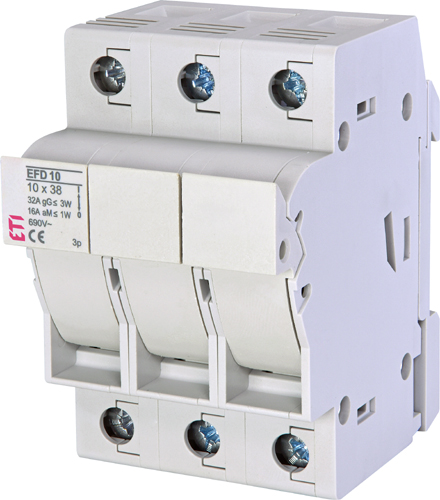

EFD10 3P |
2540004 |
|
690 |
32 |
187 |
52,5 |
4 |
|
2540014 |
LED |
|
EFD10 3P+N |
2540005 |
|
690 |
32 |
270 |
70 |
3 |
|
2540015 |
LED |
|
|
|
EFD14 (14x51) SIGORTA
YUVALARI |
|
Kod
|
Kod
No |
Indikator |
Ue/Ui
(V) |
Imax
(A) |
Agirlik
(gr) |
B
(mm) |
Paket
(adet) |
|

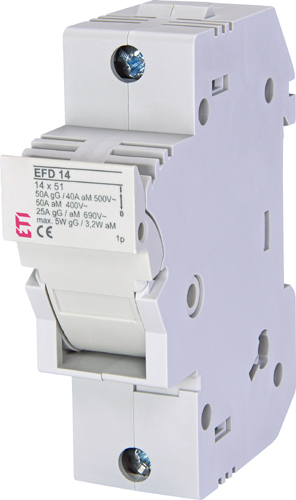

EFD14 1P |
2560001 |
- |
690 |
50 |
100 |
27 |
12 |
|
2560011 |
LED |
|
EFD14 1P+N |
2560002 |
- |
690 |
50 |
222 |
54 |
6 |
|
2560012 |
LED |
|

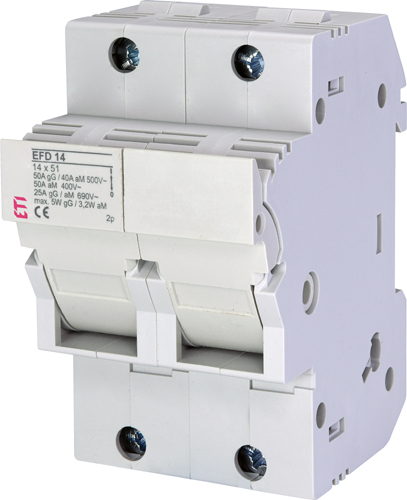

EFD14 2P |
2560003 |
- |
690 |
50 |
201 |
54 |
6 |
|
2560013 |
LED |
|
EFD14 3P
|
2560004 |
|
690 |
50 |
308 |
81 |
4 |
|
2560014 |
LED |
|
EFD14 3P+N
|
2560005 |
- |
690 |
50 |
437 |
108 |
3 |
|
2560015 |
LED |
 |
|

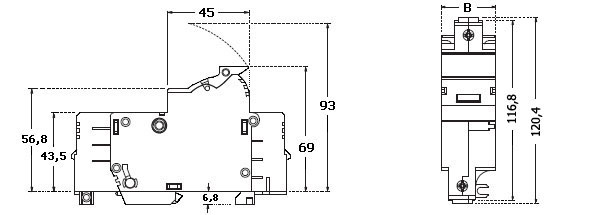

EFD22
(22x58) SIGORTA YUVALARI |
|
Kod |
Kod
No |
Indikator |
Ue/Ui
(V) |
Imax
(A) |
Agirlik
(gr) |
B
(mm) |
Paket
(adet) |
|

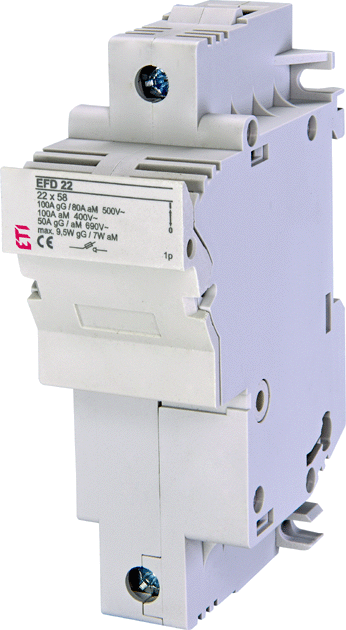

EFD22 1P |
2570001 |
- |
690 |
100 |
160 |
35,6 |
3 |
|
2570011 |
LED |
|
EFD22 1P+N |
2570002 |
- |
690 |
100 |
355 |
71,2 |
2 |
|
2570012 |
LED |
|

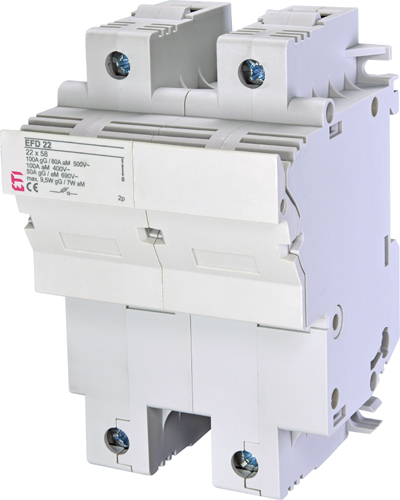

EFD22 2P |
2570003 |
- |
690 |
100 |
310 |
71,2 |
2 |
|
2570013 |
LED |
|

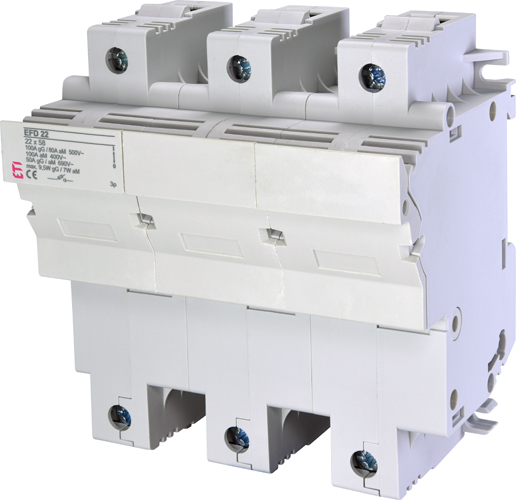

EFD22 3P |
2570004 |
- |
690 |
100 |
480 |
106,8 |
1 |
|
2570014 |
LRD |
|
EFD22 3P+N |
2570005 |
- |
690 |
100 |
680 |
142,4 |
1 |
|
2570015 |
LED |
|
 |
|
Technical data EFD |
|
|
EFD8 |
EFD10 |
EFD14 |
EFD22 |
|
Fuse type |
CH 8x32 |
CH 10x38 |
CH 14x51 |
CH 22x58 |
|
Rated voltage |
400V a.c. |
690V a.c. |
690V a.c. |
690V a.c. |
|
Rated current |
20A |
32A |
50A |
100A |
|
Rated imp. withstand volt. Uimp |
8kV |
8kV |
8kV |
8kV |
|
Max power dissipation of the
fuse-link (W) |
gG: 2,5W
aM: 0,9W |
gG: 3W
aM: 1,2W |
gG: 5W
aM: 3W |
gG: 9,5W
aM: 7W |
|
Rated conditional short-circuit
current |
50kA |
100kA/400V |
gG: 120kA/500V (50A gG)
aM: 50kA/400V (50A aM) |
gG: 120kA/500V (100A gG)
aM: 50kA/400V (100A aM) |
|
Operating ambient temperature |
-5°C ... +40°C |
|
Store ambient temperature |
-25°C ... +55°C |
|
Terminal capacity |
1-25mm2 |
1-25mm2 |
1,5-35mm2 |
4-50mm2 |
|
Rated torque |
2Nm |
2Nm |
2,5-3Nm |
3Nm |
|
Mounting on EN 60715 rail |
35mm rail |
|
Standards Fuse-links
|
IEC/EN 60269-2 |
|
Standards - Fuse holder
|
IEC 60947-1 IEC 60947-3 |
| |
|
|
EFD SİGORTA YUVALARI
İÇİN YARDIMCI SİVİÇ |
|
 |
|
YARDIMCI SİVİÇ |
Un
(V) |
In
(A) |
Kod No |
Kontak |
Agirlik
(gr) |
Paket
(adet) |
|
PS EFD14 |
250 |
5 |
2569001 |
1NO/1NC |
50 |
1/10 |
|
PS EFD22 |
250 |
5 |
2579001 |
1NO/1NC |
50 |
1/10 |
|
|
|
|
